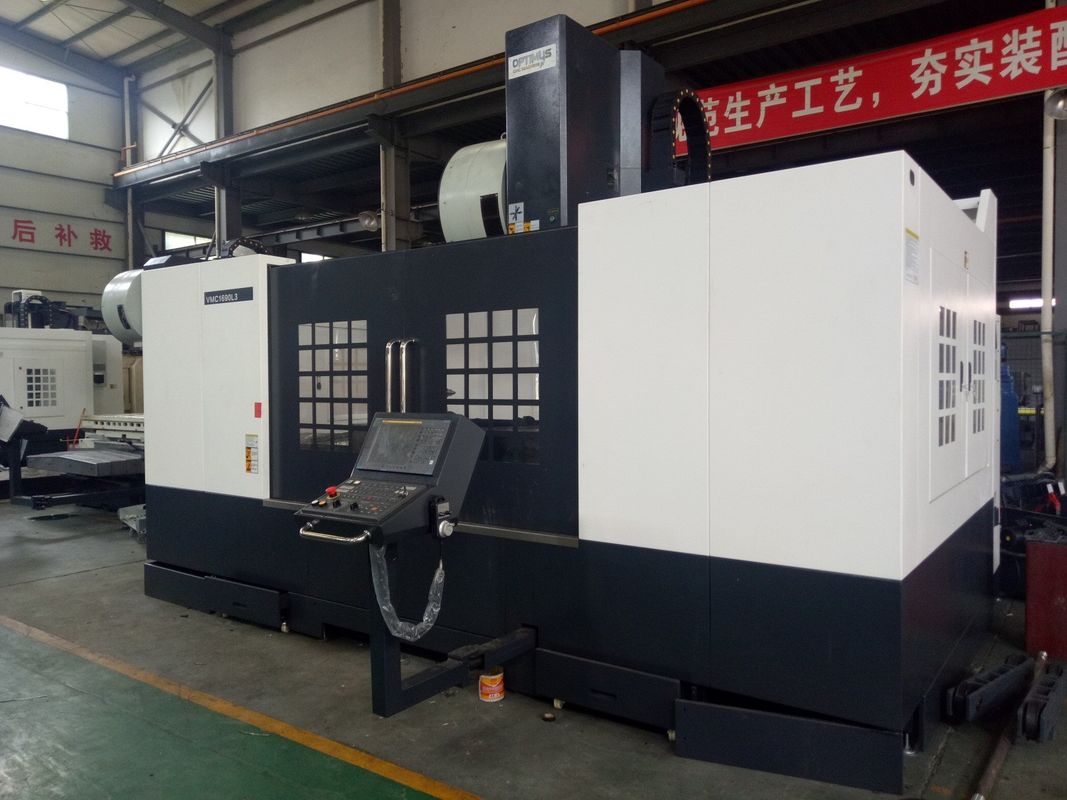

There axis Ball linear way CNC Manchine Center

VMC-1690L3 For Parts Processing

1. X/Y/Z axes are ball linear slideway. 2. High-rigidity machine body to ensure the strong cutting requirements fulfilled under fast operation. 3. Coupling,spindle bearing,spindle,ball screw,linear slideway,tool magazine,unclamping cylinder and other key parts are importedfrom top-level brands in Germany,Japan and Taiwan to ensure high quality and high precision of the products. 4. Suitablefor small to medium metal parts processing. 5. Modular configuration,can provide customized options to meet different processing needs: with spindle water coolant,Ring spray type spindle,10000-15000 rpm/min direction connection spindle etc. 6. This machine center serie specializes in processing metal parts,with faster feed speed, and high rigidity cutting

Model	VMC1690L3
Table size	1800*900
X/Y/Z travel	1600*900*800
Distance between spindle and table	180-980mm
Distance between spindle and column	960mm
Spindle rotation speed	8000 rpm
Spindle Taper	BT50
Spindle Motor	18.5kw
X axis Rapid feed	24 m/min
Y axis Rapid feed	24 m/min
Z axis Rapid feed	18 m/min
Cutting feed	10 m/min
Positioning accuracy	0.008
Dimension	4860*4300*3600
Net weight	12500kg
Max load of table	1600kg

Standard Accessories 1.Fance / Mitsubishi controller system 2. Full enclosed cover 3.Spindle encoder position system 4.Three inner encoder feedback system 5.Auto lubrication system 6.Penumatic system 7.RS232 interface 8.Operation unit 9.Warming light 10.Working light 11.Tool and tool box OptionalAccessories 1.Siemen system controller or other controller 2.Spindle oil coolant 3.Umbrella type tool magazine 4.Arm type tool magazine 5.Screw type auto conveyor 6.Chain type auto conveyor 7.4 axis rotary 8.Through spindle water coolant 9.Ring spray spindle Precision machinery manufacturer since 1995. Your reliant expert on moulding and machining equipemnt! Q1. How can I get a quotation? A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines? A. Yes, free training in our factory is available. Q4. How about your price? A. Send me details about what you need, you will get the best price in China. The price is competitive over the world. Q5. What's your warranty terms? A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details. Q6. What’s the delivery time, and what’s the package? A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
