1270*254mm Table Turret Milling Machine 4E X And Z Axis Dovetail WayProduct Details 1. Our universal turret milling machine are widely used for household appliances, daily necessities mold processing, boring in almost every country all over the world because of the high quality with competitive price. 2. High strength cast iron,high rigidity, long service life. 3. Swallowtail guide way is adopted on X and Z axis,and rectangular guide way on Y axis. 4. Our milling machines has passed the strict CE certification. Our factory also get the ISO certificate. 5. Low price with good quality. 6. Spindle tolerance: 0.005mm. Our after-sales service terms and conditions as follows: 1. Perfect after-sales service system, quick service response 2. We provide on-site installation and debugging training 3. The vertical turret milling machines have trial production in our factory before leaving our factory. 4. During this period of one year warranty , if the turret milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts. Specifiaction

Model	4E
Table size	1270*254*90mm
X axis travel	900mm
Y axis travel	395mm
Z axis travel	340mm
Travel of spindle quill	127mm
Max distance from the spindle nose to table	400mm
Spindle rotation speed	80-5440/(16Grades)/60HZ 66-4530/(16 Grades)/50HZ
Spindle Taper	R8(NT30)
Spindle Rated power	3HP (2.2KW)
Tilt angle Forward and backward	±45°
Tilt angel left and right	±90°
Dimension	1500*1700*2150mm
Net weight	1400kgs

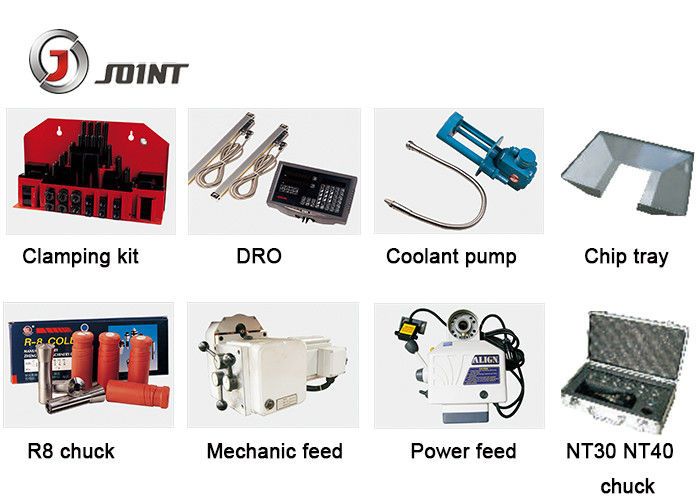

Standard Accessories:1. Step speed milling head2. Way cover3. Working light4. Tool and toolboxOptional Accessories:1. Milling chuck2. Clamping kit3.6 Vise4. Coolant system5. X/Y Axis power feed6. Elevator motor7. Two axis DRO /Three axis DRO8. Mechanic Feed9. Variable speed milling head10. Inverter speed milling head11. NT30/NT40 Power feedFAQQ: Can we start with small quantity ?What's the MOQ?A: We can accept orders with any quantity. The MOQ is 1 unit.Q: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: 30% in advance.and the rest payment should pay before delivery.Q: How many years have your company established?A: 23years, our company built in 1995.Q. How can I get a quotation?A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
