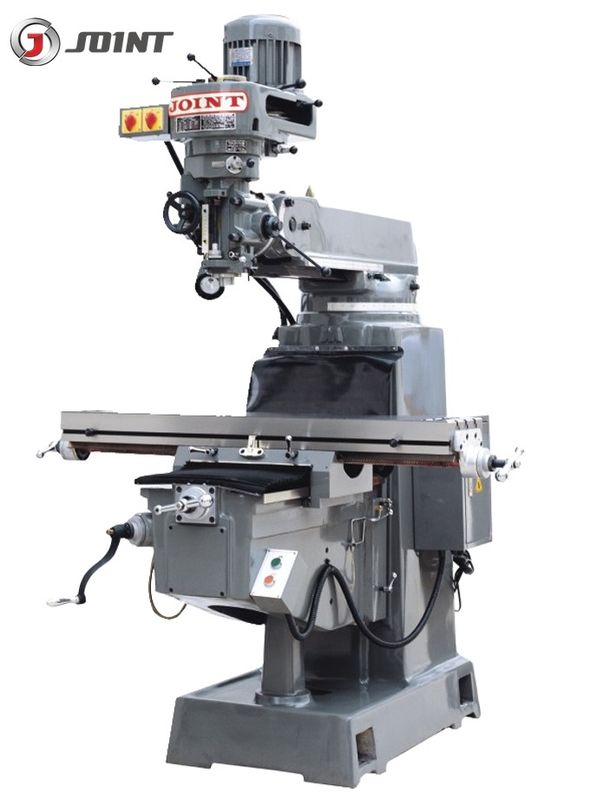

High precision componet milling and boring machine 4PM
◆ Suitable for precision electronics, optical machinery and automation equipment, semiconductor precision components processing. ◆ Suitable for boring, milling, drilling and other high positioning size processing, boring accuracy is controllable in the range of 0.005-0.012mm. ◆ Taiwan high quality original milling head, NSK P4 precision grade spindle bearing, spindle runout: 0.003mm. ◆ X, Y precision ball screw drive, precise positioning, feel smooth.
| Model | 4PM |
| Table size | 1270*254*90mm |
| X axis travel | 900mm |
| Y axis travel | 370mm |
| Z axis travel | 360mm |
| Travel of spindle quill | 127mm |
| Diameter of quill | 85.725mm |
| Max distance from the spindle nose to table | 400mm |
| Spindle rotation speed | 66-4540/(10Grades)/50HZ 80-5440/(10Grades)/60HZ |
| Spindle Taper | R8(NT30) |
| Spindle Rated power | 3HP |
| Tilt angle Forward and backward | ±45° |
| Tilt angel left and right | ±90° |
| Dimension | 1500*1700*2200mm |
| Net weight | 1400kgs |
Q1. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q2. Can you provide training for operation CNC machines? A. Yes, free training in our factory is available. Q3. What's your warranty terms? A.We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.
