| Name: | Flat Bed CNC Lathe Machine CKI6150 | Max Swing Over Table: | 500mm |
|---|---|---|---|
| Max Swing Over Carriage: | 290mm | X/Z Axis Rapid Feed: | 6/8 M/min |
| Servo Motor Connection: | Direct Connection | Tool Height: | 25mm |
| Tool Width: | 25mm | Tailstock Shaft Taper: | MT5 |

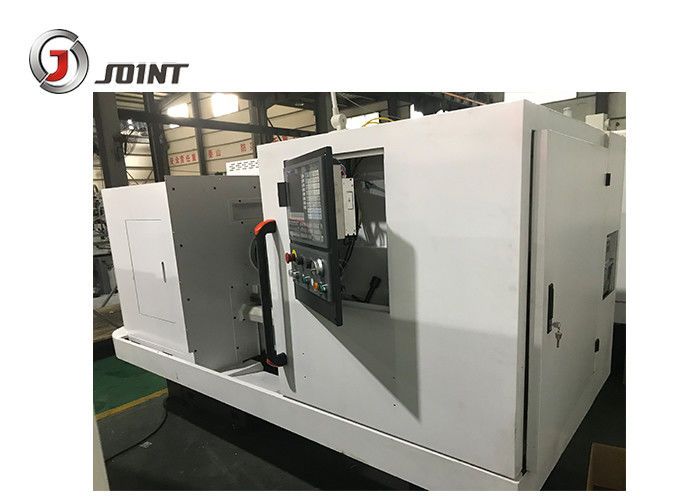

MT5 Tailstock Taper Flant Type CNC Lathe Machine CKI6150 Direct Connection Servo Motor Quick details: 1. CKI6150/1000/1500/2000 CNC lathes are common upgrade products for CNC lathes on the market. Compared with ordinary CNC lathes, they mainly enhance the rigidity, dynamic balance, and waterproofness of the machine tools, resulting in greater cutting capacity of the machine tools. 2. This CNC lathe machine is suitable for machining the internal and external surfaces of shaft parts, threads, arcs, cones and rotors. 3. With three-speed gearbox or manual 24-speed gearing, powerful chips can be achieved to meet the machining requirements of large cutting quantities. Product advantage 1. Casting using resin sand casting, high quality, small deformation, super audio frequency quenching guide rail, peripheral grinding process2. The through hole of the main shaft is 82mm, equipped with frequency converter gear box to realize three-step stepless speed regulation, 45-180r/min, 180-750r/min, 600-1600r/min, or manual 24-speed 9-1600r/min3. The main rail has a width of 390mm and a large span, making the carriage rigid.4. Machine pallets, all plastic strips, better wear resistance.5.The bed is equipped with fully enclosed sheet metal, superior waterproof performance, convenient chip removal. Specification Of Flat Bed CNC Lathe Machine CKI6150
Standard Accessories:GSK 980TDiController system, servo motor and drivingCutting fluid systemWorking lightSpindleAuto lubrication system Machine coverOperation unit4 position electronic turret+3 jaw chuckLeveling pad Manual tailstock Tools and toolbox Technical documentsOptional accessories:3 jaw hydraulic chuck Auto feed bar
| Item | Unit | CKI6150 |
| Max swing over table | mm | 500 |
| Max swing diameter over carriage | mm | 290 |
| Spindle head | D8 | |
| Max processing length | mm | 1500 |
| X axis Travel | mm | 295 |
| Z axis Travel | mm | 1300 |
| Spindle through hole diameter | mm | 82 |
| Spindle motor | kw | 7.5 |
| Spindle rotation speed | rpm | Spindle 3 grades gear box:45-180, 180-750, 600-1600r/minmanual 24 grades, 9-1600r/min |
| Servo motor connection type | Direct connection | |
| X axis rapid feed | m/min | 6 |
| Z axis rapid feed | m/min | 8 |
| Tool width*height | mm | 25*25 |
| Turret center height | mm | ≤145 |
| Tailstock Shaft diameter*travel | mm | φ75*120 |
| Tailstock taper | MT5 | |
| Positioning accuracy | mm | 0.01 |
| Power | kw/h | 10 |
| Dimension | mm | 2490*1420*1600 |
| Net weight | kg | 2300 |
