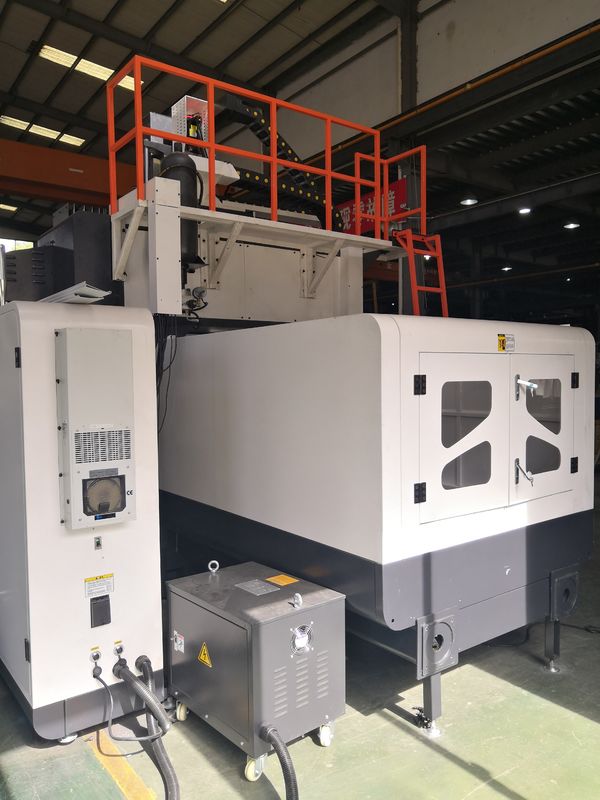

900*2000mm worktable 15KW/BT50/8000rpm spindle small gantry type machine center BTMC-1220 heavy cutting and hammer

1.BTMC1220 is upgrade the product the of big size VMC-1270 cnc machine center advantages. 2.Improve amchine processing precisoin, spindle centerline and Z axis guide-way is basic coincidence, without deformation problem of spindle box caused by 780-950mm gap of VMC machine. 3.Elimainate the precision difference by caused worktable of impending at both ends. 4.Good Accuracy stable, long service life, Y axis don't bear work-piece weight, worktable running is no more than base of table, solve the worktable long-term bearing load, cause the deformation. 5.Loading weight of worktable is increased by 50% than loaded weight of VMCmachine table. 6.Heavy cutting of machine's vibration is reduced, it is more suitable heavy cutting for the structure design of spindle centerline and Z axis guide-way basic cioncidence. 7.Z axis adapt Nitrongen balance, improved reaction speed, run more smoothly than VMCmachine with heavy hanmmer.

Model	BTMC-1220
Table size	900*2000mm
X/Y/Z travel	2000/1200/800mm
Distance between spindle and table	120-920mm
Spindle rotation speed	6000/8000 rpm
Spindle Taper	BT50 (φ155)
Work table T slot	7-22*125(No- size-pitch)
Spindle Motor	15-18.5kw
X axis Rapid feed	18 m/min(X axis heavy-duty ball screw)
Y axis Rapid feed	18 m/min(Y axis heavy-duty ball screw)
Z axis Rapid feed	18 m/min(Z axis hard way)
Max cutting feed	8 m/min
Positioning accuracy	0.001
Dimension	5000*2800*3600
Net weight	14000kg
Max load of table	2000kg

For more details, welcome to contact with us by clicking here. Precision machinery manufacturer since 1995. Your reliant expert on moulding and machining equipemnt! Q1. How can I get a quotation?A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines? A. Yes, free training in our factory is available. Q4. How about your price? A. Send me details about what you need, you will get the best price in China. The price is competitive over the world. Q5. What's your warranty terms? A.We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details. Q6. What’s the delivery time, and what’s the package? A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
