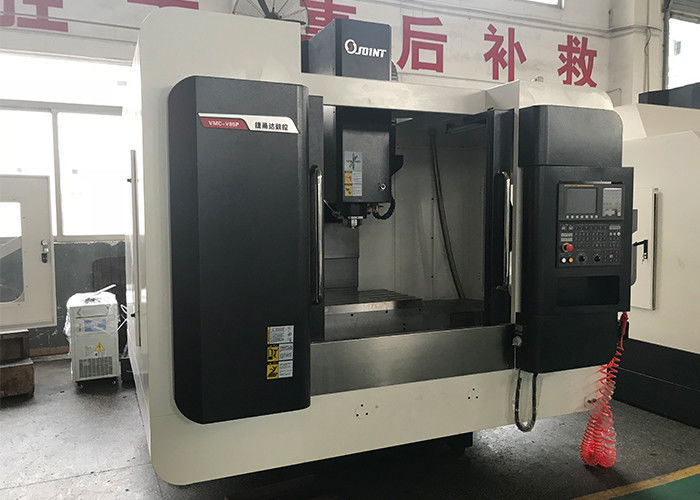

BT40 45° 140mm Spindle Vertical Machining Center Fanuc β Motor 0i-MF System​ Machine description 1. V85P is configured with FANUC Oi-MF(5) controller system, Fanuc β servo motor,spindle oil coolant, heat exchanger, 24 tools ATC. 2. Fast rapid feed for x/y/z axis 36m/min, high efficiency for processing parts. 3. Optimized machine structure making its better performance in rigigity, suitable for making moulds. 4. It is widely applied in 3C products, automatic production line parts, electronics, machinery, car, plane, aerospace, shipbuilding and national defense etc. Machine precision

Test item	Test result
X/Y/Z axis reverse gap	0.002/0.002/0.001
Positioning accuracy	0.006/0.007/0.006
Repeated positioning accuracy	0.006/0.005/0.005
Squareness	0.008
Roundness	0.005

Specification Of Vertical machine center V85P

Model	V85P
Table size	1000*550mm
X axis Travel	800mm
Y aixs Travel	500mm
Z axis Travel	500mm
Distance between spindle and table	160-660mm
Distance between spindle and column	524mm
Spindle rotation speed	10000 /Direct connection 12000/15000rpm
Spindle motor	7.5kw
Work table T slot	5-18*100
X/Y/Z axis ball screw size	3616
ATC type	24too arm type
Time of changing tool	2.5m/min
Rapid feed	48*48*48m/min
X/Y/Z axis motor	12/12/20NM
Max cutting feed	10m/min
Min set moving unit	0.001mm
Dimension	2650*2900*2850mm
Net weight	5000kgs
Max load of table	600kgs

Standard Accessories Fanuc Controller system 10000/12000/15000Rpm spindle 24tools arm type tool magazine Spindle oil cooler Heat exchanger Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit RS232 Interface Working light Tool and tool box
