500 * 400 * 300mm Brother Drill Tap Center Auto Lubrication System Included

Products Details

Name: VTC500H Travle: 500*400*300mm
Speed: 15000/20000/24000rpm Spindle Motor: 2.2/3.7kw
Net Weight: 2800kgs ATC Type: 16 Tools Clamp Arm ATC

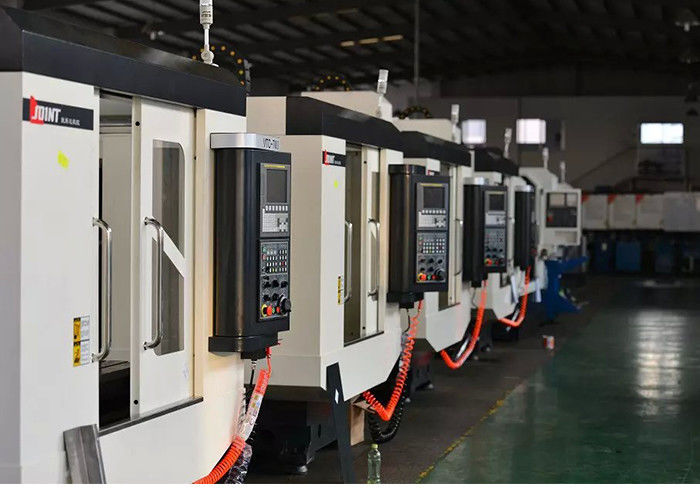

High speed high efficiency cnc drilling and taping machine center VTC500 Product features: 1. The main parts of the fuselage are cast with high quality cast iron. 2. The internal muscles and bones are strengthened, all of them are treated by tempering. 3. And the finite element analysis is carried out by special design software. 4. It has the characteristics of high strength, good stability, and not easy to deform 5. Ensure the rigidity of the whole machine and the accuracy stability of long-term use. Spindle Feature: 1. The spindle head structure, internal strengthening, p4 super precision bevel ball bearing. 2. Long span support design can make the spindle bear strong radial and axial thrust and eliminate the vibration caused by heavy load cutting. 3. Configuration of Taiwan Ruiying spindle, the highest speed of up to 20000 revolutions. 4. A gap-free precision coupling transmission, high transmission accuracy. 5. The low inertial spindle is sensitive to the bt30 spindle during high speed tooth tapping, 6. And the main shaft motor adopts the power supply to pick up, and the speed of the main shaft motor response is fast. 7. The design of the main shaft nose with the main shaft air curtain can prevent the entry of debris and ensure the spindle precision and life. Standard Accessories: 1. Fanuc 0i-MF(5) control system with α motor 2. Coolant system 3. Pneumatic system 4. BT30/3.7KW/12000RMP Spindle 5. Enclosed cover 6. Air gun Optional accessories: 1. Oil water seperator 2. Spindle oil coolant 3. Rotary table   Specification
Model Unit VTC500
Working table Table size mm 620*420
Max.Loaded of table kg 200
T slot(quantity-size-gap) pcs-mm-mm 3-18-125
Distance between spindle and table mm 210-510
3 axis travel X axis mm 500
Y axis mm 400
Z axis mm 300
Positioning accuracy X axis mm 0.006
Y axis mm 0.006
Z axis mm 0.006
Repeated positioning accuracy X axis mm 0.005
Y axis mm 0.005
Z axis mm 0.005
Spindle Spindle rotation speed rpm 10000/12000/15000
Spindle taper BT30
Tool Tool handle model BT30
Blind rivet model BT30 45°
Rapid feed X axis mm/min 48000
Y axis mm/min 48000
Z axis mm/min 48000
Cutting feed X,Y,Z axis mm/min 8000
Tool magazine ATC Size tools 16T
Too changing time (T-T) sec 2.5
Max.Size of tool Near/Interval mm 80/150
Max.weight of tool Kg 3
Motor Max. Spindle motor Motor Kw 3.7-5.5
X,Y,Z axis Power Kw/Rated torque Nm 1.5/42
Total capacity of electric KVA 10
Weight of machine Kg 3000
Dimension mm 1600*2000*2350
