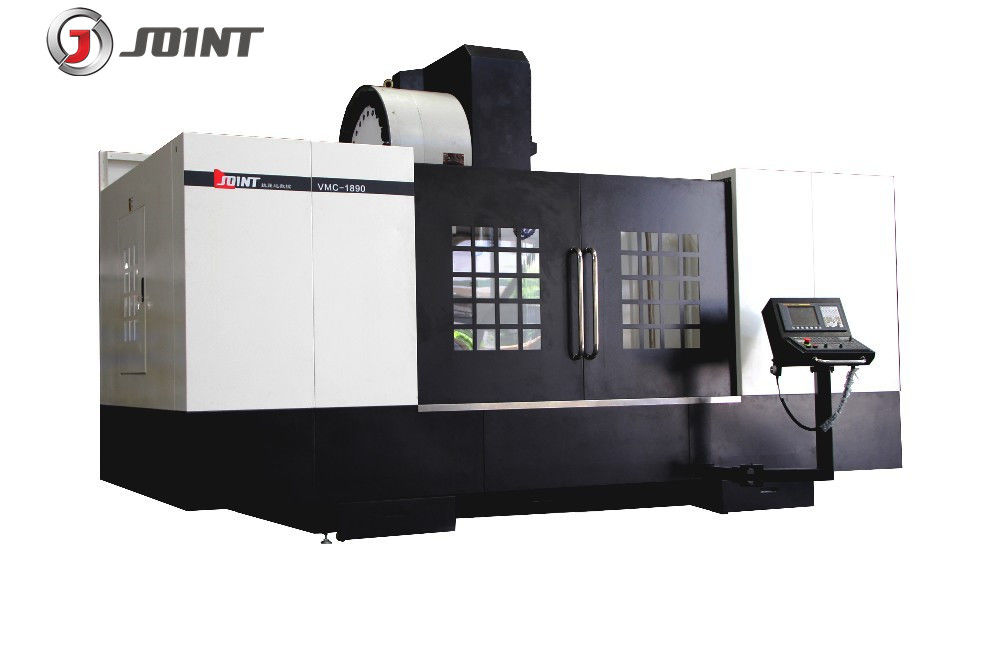

Three axis box wayCNC Machine Center VMC1890

1. X,Y,Z Axes slide way are quenched and fixed to mould rail.2. High-rigidity machine body ensure cutting requirements can be met.3. Coupling, spindle bearing, spindle, ball screw, linear slide way, tool magazine,   unclamping cylinder and other key parts are imported from Germany,Japan and Taiwan top brands to ensure high quality and high precision.4. Complete product model,from 540 to 1890,suitable for various small to medium mould processing. 5. Modular configuration,can provide customized options to meet different customers processing needs: Spindle water coolant, Gear type spindle- case,12000-15000 rpm/min direct connection spindle.6. This machine center focuses on mould processing,it also suits mechanic parts   processing.7. In this serie models above 1580 employ temperature control technique (our patent) to ensure the stability and accuracy for long-hour processing. 1. Taiwan famous brand high speed and high precision spindle. 2. Tool magazine optional 3. High strength resin sand casting. 4. NSK bearing imported from Japan 5. Automatic intermittent lubricate system 6. Fully enclosed cover 7. Fanuc, Simens, Mitsubishi, Syntec CNC control system

Model			Unit	VMC-1890
Travel		X axis	mm	1800
		Y axis	mm	900
		Z axis	mm	680
Distance between spindle and table			mm	160-840
Working table		Table size	mm	2000*900
		Max. Load of table	Kg	1600
		T slot	Pcs－mm-mm	5-22-165
Positioning accuracy		X/Y/Z axis	mm	0.08/0.008/0.008
Repeated positioning accuracy		X/Y/Z axis	mm	0.006/0.006/0.006
Spindle		Spindle rotation speed	Rpm	8000
		Spindle taper		BT50
		Diameter	mm	Φ190
		Rivet model		BT40 45°
Rapid feed		X/Y/Z axis	m/min	12/12/10
Cutting feed		X/Y/Z axis	m/min	8
Tool magazine	Umbrella type	Size	Tools	20
		Too changing time (T-T)	Sec	6
		Max. diameter/ length/weight of tool	mm	134/250/15
		Max tool diameter (no tool adjacent)	mm	185
	Arm type	Size	Tools	24
		Tool changing time (T-T)	sec	3.5s
		Max. diameter/ /length/weight of tool	mm	110/200/15
		Max tool diameter (no tool adjacent)	mm	200
Weight of machine			Kg	13500
Dimension			mm	4860*4300*3600

1. Fanuc MF(5) Controller system 2. 8000Rpm spindle 3. Full enclosed cover 4.Spindle encoder position system 5. Three axis inner encoder feedback system 6. Auto lubrication system 7. Pneumatic system 8. RS 232 Interface 9. Operation unit 10. Working light 11. Tool and tool box
