| Name: | Gantry Type Double Column Machine Center | Model Name: | BTMC-1220 |
|---|---|---|---|
| Table: | 900*2000mm | X/Y/Z Axis Travel: | 2000/1200/800mm |
| Width Of Gantry: | 1220mm | Spindle Taper: | BT50(φ155mm) |
| Rotation Speed: | 6000rpm | Spindle Motor: | 15kw |

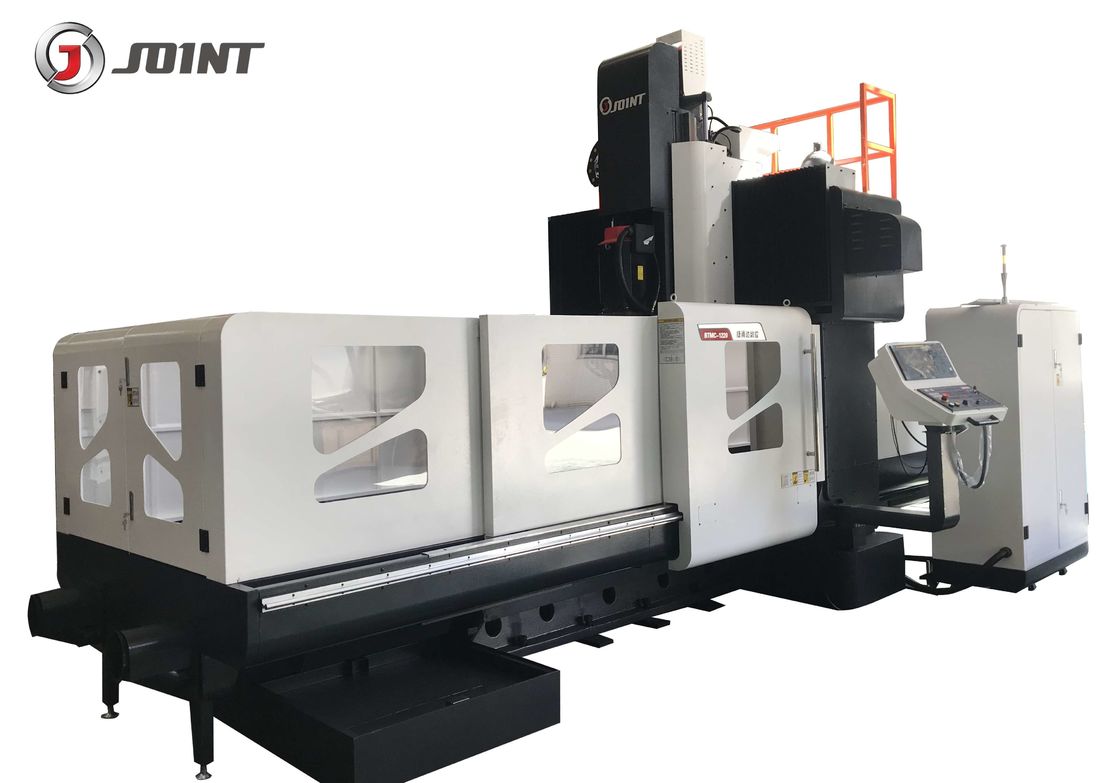

Smallgantry type CNC millingcenterBTMC-1220
BTM 10/12 series is the upgrade product of big size VMC machine (1270/1370/1580/1690/1890) advantages.
◆High precision key parts: Linear way, ball screw from Germany or Taiwan top brand products, Japan NSK/P4 class tight bearing. ◆Adopted Taiwan BT50 rotary machinery spindle, two axis linear way, suitable for large mold and parts high speed processing. ◆High rigidity gantry fixed beam structure, to ensure the stability of the machine body under strong cutting and high speed cutting conditions. ◆Adopted temperature compensation technology, to improve the processing accuracy under long - time processing conditions.
Precision machinery manufacturer since 1995. Your reliant expert on moulding and machining equipemnt!
Q1. How can I get a quotation?A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines? A. Yes, free training in our factory is available. Q4. How about your price? A. Send me details about what you need, you will get the best price in China. The price is competitive over the world. Q5. What's your warranty terms?A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details. Q6. What’s the delivery time, and what’s the package? A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
BTM 10/12 series is the upgrade product of big size VMC machine (1270/1370/1580/1690/1890) advantages. ◆High precision key parts: Linear way, ball screw from Germany or Taiwan top brand products, Japan NSK/P4 class tight bearing. ◆Adopted Taiwan BT50 rotary machinery spindle, two axis linear way, suitable for large mold and parts high speed processing. ◆High rigidity gantry fixed beam structure, to ensure the stability of the machine body under strong cutting and high speed cutting conditions. ◆Adopted temperature compensation technology, to improve the processing accuracy under long - time processing conditions. | Model | BTMC-1220 |
| Table size | 900*2000mm |
| X/Y/Z travel | 2000*1200*800mm |
| Distance between tool head and table | 500-850mm |
| Work table Y slot (NO.-size*pitch) | 7-22*125mm |
| Width of gantry | 1220mm |
| Spindle rotation speed | 6000 rpm/min (optional 8000rpm/min) |
| Spindle Taper | BT50(φ155/190mm) |
| Spindle Motor | 15kw |
| X/Y/Z axis Rapid feed | 12/12/8 m/min |
| Positioning accuracy | 0.01mm |
| X/Y/Z axis Cutting feed | 8 m/min |
| Dimension | 7260*3210*3920mm |
| Net weight | 14000kg |
| Max load of table | 2000kg |
Precision machinery manufacturer since 1995. Your reliant expert on moulding and machining equipemnt! Q1. How can I get a quotation?A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines? A. Yes, free training in our factory is available. Q4. How about your price? A. Send me details about what you need, you will get the best price in China. The price is competitive over the world. Q5. What's your warranty terms?A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details. Q6. What’s the delivery time, and what’s the package? A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
