| Name: | CNC Lathe Machine | Model: | HTC3627B |
|---|---|---|---|
| Max Length Of Workpiece: | 200mm | Spindle Through Hole Diameter: | 56mm |
| Z Aixs Limited Travel: | 260mm | Spindle Motor: | 5.5kw |
| Spindle Rotatio Speed: | 4500rpm | X Axis Limited Travel: | 350mm |

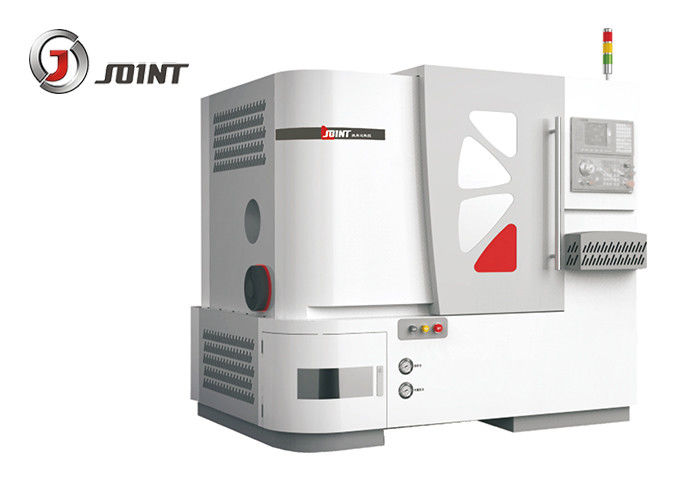

Slant Bed CNC Lathe Machine For Shaft Metal Cutting
◆Slant bed type casting, two axis linear way apply to high precision processing. ◆Taiwan linear way ensured the stability of accuracy. ◆Taiwan high speed and high ac curacy spindle, Japan high precision bearing. ◆Hydraulic chuck, hydraulic station and hydro-cylinder are optional. ◆Chain type auto conveyor is optional. GSK control system or KND control system.
◆Slant bed type casting, two axis linear way apply to high precision processing. ◆Taiwan linear way ensured the stability of accuracy. ◆Taiwan high speed and high ac curacy spindle, Japan high precision bearing. ◆Hydraulic chuck, hydraulic station and hydro-cylinder are optional. ◆Chain type auto conveyor is optional. GSK control system or KND control system. | Model | HTC-3627B |
| Max swing diameter over table | 360mm |
| Max swing diameter over carriages | 120mm |
| Max length of workpiece | 200mm |
| Spindle head | A-5(6") |
| Spindle motor | 5.5KW |
| Spindle rotation speed | 4500rpm |
| Spindle through-hole diameter | 56mm |
| bar diameter | 42mm |
| X axis limited travel | 350mm |
| Z axis limited travel | 260mm |
| Tool post | 1. Gang tool /Four position electrical turret 2. six or eight position hydraulic turret |
| Chuck power | 6'' hydraulic chuck |
| Height of tool turret center | 63mm |
| X axis rapid movement | 20m/min |
| Z axis rapid movement | 20m/min |
| Bed type | whole body slant type 30° |
| Dimension | 1940*1320*1820mm |
| Net weight | 1780kgs |
